Truck And Trailer ABS Flash Codes

May 31st, 2012 Comments off

KNOW YOUR DIFFERENT ABS FLASH CODES FOR DIFFERENT MAKES OF SYSTEM

There are always two, possibly three, ways to power up the ABS system and you should know what to expect regarding light function. If an ABS/EBS cable is fitted then the GREEN headboard monitor lamp should be ignored and only look at the in-cab RED dashboard light. (The trailer light may not work at all with the ISO7638 connected)

STATIONARY TRAILER HEAD BOARD LAMP FUNCTION WHEN POWERED ONLY BY 24N STOP LIGHTS (REMOVE ALL OTHER CABLES)

ABS ECU

MAKE & MODEL

STOPLIGHT POWER UP LAMP

LAMP AFTER 2 SECONDS

LAMP AFTER 4 SECONDS

DOWN ROAD <10KPH LAMP <10 KPH FAULTY IF LAMP
HALDEX/GRAU MGX 1 & 2

ON

OFF

OFF

OFF

ON

HALDEX/GRAU

MGX 2E

ON

ON

ON

OFF

ON

HALDEX/GRAU

MGX 100

ON

OFF

ON

OFF

ON

HALDEX/GRAU

MODAL

ON

OFF

ON

OFF

ON

HALDEX/GRAU

MODULAR 1/1+/2

ON

OFF

ON

OFF

ON

WABCO VARIO C BOXER

ON

ON

ON

OFF

ON

WABCO

VCS 2S/2M

ON

ON

ON

OFF

ON

BENDIX/KNORR

AL4T

ON

OFF

OFF

OFF

ON

KNORR-BREMSE

KB A18

ON

OFF

OFF

OFF

     ON**

KNORR-BREMSE EBS TEBS 4

ON

ON

ON

OFF

ON



The in-cab dashboard warning light will only work when the ABS Susie (ISO7638) or, in some cases, the 24S is connected. The lamp sequence will mimic the trailer headboard warning lamp when the ignition is turned on (NOTE: NO NEED TO PRESS FOOT BRAKE PEDAL)

** The first time after fitting a new ECU, this sequence is different until the vehicle has been driven above 30kph and the brought to a halt for dynamic sensor check. After this it should function as shown in table.

·         24Normal – ISO 1185

·         24 Supplementary – ISO3731

·         ABS/EBS – ISO7638

aide automotive ltd offer trailer light testers and ABS / EBS sensor testers for truck and trailer diagnostic repairs.

How To Protect From Catalytic Converter Theft!

May 28th, 2012 Comments off

The CatGuard Alarm Now Has The Extra Benefit Of An Serial Number Identification Kit to Protect Against This Costly Theft

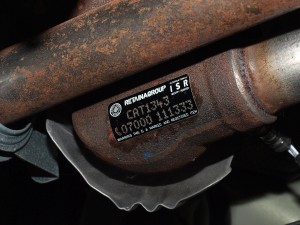

With the massive increase in Catalytic Converter theft, aide automotive has made an addition to the CatGuard Alarm kit. As well as the CatGuard Alarm we can add a unique serial number to the Catalytic Converter by virtually indestructible sticker and metal marking fluid. A belt and braces approach to protect against theft. You can register this serial number with local police and offer insurance companies a proactive solution to this automotive problem.



aide automotive offer an on-site fitting service of the CatGuard and Catalytic Serial Number Kit. Installation can be undertaken out of hours to suit a working fleet. CatGuard can also be installed by competent internal staff.



Taller vehicles such as Cars, Trucks, Vans, 4x4s & Motorhomes are particularly vulnerable as the Catalytic converters are more accessible and, because they tend to have larger engines, they contain more of the precious metals.



It’s not unusual for a new catalytic converter to cost in the region of £1,000 and repair bills of Catalytic Converter Theft to total £3,000.



With thieves just simply cutting each end of the catalytic converter and removing it completely, CAT Converters need to be protected. CatGuard has a sophisticated sensor fitted near to the catalytic converter, and if thieves attempt to remove the catalytic converter in any way then the CatGuard alarm will be activated. CatGuard is fitted to a vehicle in less than an hour.



Catalytic Converter Theft could seriously affect a business by downtime or the cost!

Read more and contact us at www.catalytic-converter-theft.co



How To Protect From Catalytic Converter Theft

Stop Catalytic Converter Theft

Trailer Light Box Tester For Chatfields

May 21st, 2012 Comments off

aide automotive have recently supplied all Chatfields truck locations with trailer test and diagnostics testers, Chatfields are a franchised truck repairer & distributor for DAF, Renault Truck, Hino & Iveco, predominantly across the North of England.

TrailerCheck is an intelligent trailer tester and diagnostic code reader / clearer for all makes of commercial trailers.

Wayne Edwards, the Chatfields National Franchise Director, commented “as part of the Chatfields’ one stop shop philosophy and following requests from customers, we decided to invest in the latest diagnostic and test equipment for trailers, with this we decided to invest in TrailerCheck from aide automotive ltd. This investment enables us to offer trailer maintenance service and repairs across all depots; this service also includes curtain repairs & bodywork.

aide automotive assessed the type of work our service would undertake and offered advice on the correct model type. Technical support was also part of the decision to invest in TrailerCheck, which included on-site training as part of the package. TrailerCheck has proved to be invaluable in the first few months of use in each depot, with customers feedback on the improved speed and accuracy of diagnostic repairs compared with their previous suppliers, which in turn saves our customers time and money.”



TrailerCheck is available is portable test boxes or van / workshop installed units. Remote Code Talk also covers reading and clearing of fault codes within the trailers ECU. Furthermore TrailerCheck 4 Vans  / Workshop also incorporates air test gauges enabling a total one man maintenance tool for trailers.

Contact aide automotive on 0115 8456471 for further details.

Fuel Theft Diesel

May 15th, 2012 Comments off

aide automotive offer product to protect from Diesel Theft.

TP Anti Syph and FuelKeep Value are two cost effective products to stop quick siphoning of fuel from truck tanks.

TankGuard is the latest product to protect diesel, this new fuel tank alarm will sound once the fuel cap is removed.

All the above anti fuel theft products could have protected RK Transports 800 Litres of Diesel!

800 litres of fuel stolen from RK Transport Services

Willenhall-based RK Transport Services has been hit by a series of diesel thefts in the past year, with the latest incident seeing thieves siphon off 800 litres of fuel costing the firm around £1,000.   Dave Barlow, sales manager at the haulier, says the intruders entered the site and broke the locking fuel caps off four lorries to obtain access to the diesel.   The West Midlands firm, which runs a fleet of 30 vehicles and specialises in general haulage, is now waiting on planning permission to tighten security with higher perimeter fences.

Story taken from Commercial Motor News dated – 8.5.12

Stop Fuel Theft

Stop Fuel Theft With A Anti Siphon

Toyota Hiace Van Anti Siphon

May 4th, 2012 Comments off

aide automotive have introduced a new anti siphon for vans.

Desgined to fit a van of any type the Toyota Hiace is now approved and available.

Van Fuel Theft is on the increase with potential diesel value of £80 + per tank.

The Spider Anti Syphon is now available for Toyota Hiace and Some Ford Transit Vans (pending year).

Futher van models such as Sprinter, Berlingo, Vauhxhall, Nissan and Kangoo will be available soon.

Contact aide automotive ltd for further information and costs.

Van Fuel Theft, Anti Siphon for Vans and Diesel Theft from all a Van, all protected by a Spider Anti Siphon.
