Truck EBS Brake Tester

July 31st, 2019 No comments

This Is The ISOCheck EBS Plus Tool.

Designed By Our In House Tech Team The ISOCheck Tool Will Test The ISO7638 Socket On The Rear Of A Tractor Unit.

Trucks first used on the road on or after 1 May 2002 must be fitted with ISO 7638 connections. If a truck is fitted with an Electronic Braking System (EBS) and is towing a trailer fitted with EBS then a 7 core cable must be used. Trucks & Trailers with a defective EBS system (especially double decker trailers) would vastly increase the chances of roll over or jack-knife.

The simple & quick procedure of attaching the tester to the ISO7638 Truck Susie Socket and turning on the ignition will confirm Green for Good Or Red for Fault! So when the truck is returned to the road all information from the trucks ISO7638 can be trusted & proven.

Also, if the RED light indicates a fault, ISOCheck EBS-Plus will indicate which pin is at fault. Once the initial power test is complete with a RED fault light, ISOCheck will then go into diagnostic mode and flash a 1 to 7 count sequence in relation to the faulty pin.

ISOCheck EBS will test all electronic braking systems, Wabco, Knorr Bremse and Haldex, covering the differences between the early generations and the latest.

So for truck manufacturer workshops to large haulage fleets to small independent commercial repairers, ISOCheck Is An Ideal Tool!

Inspection Sheet Check Of The ISO Brake Line Creates A Safety Brake Check.

aide automotive 0n 0115 8456471

The Electronic Braking System (EBS) Susie or the ISO 7638

What Is The ISO EBS Truck & Trailer Lead?

Protection Of A Trucks Diesel

July 24th, 2019 Comments off

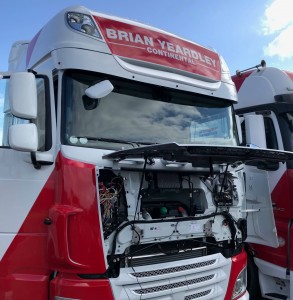

Anti Truck Fuel Theft Alarm Installed At Brian Yeardly Int.



Fuel Tank Alarm Protection For Brian Yeardly

TankGuard is the latest product to protect truck diesel from theft.

TankGuard the Anti Fuel Theft Alarm will activate once the fuel cap is removed or a potential thief tampers with a Truck Fuel Tank.

Brian Yeardly Int are one of the UK’s most competitive general & music festival haulage companies, with a fleet operating with dual diesel tanks containing £1500 worth of fuel, an alarm is a necessity.

Tank Guard automatically arms after the ignition has been switched off for sixty seconds.

The TankGuard Fuel Theft Alarm is a relatively easy aftermarket installation with the option of adding a second sensor for dual fuel tanks.

aide automotive can be contacted via email info@aideautomotive.com or by phone – 0115 8456471



Stop Diesel Truck Theft

Anti Truck Fuel Theft Alarm Installed At Haulage Company Brian Yeardly Int.

ISO7638 Truck & Trailer Tester

July 19th, 2019 Comments off

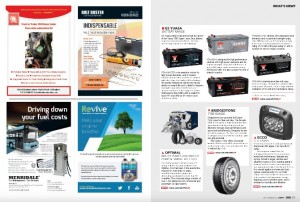

#Commercial #Vehicle Workshop is a business magazine for companies and individuals involved in all aspects of commercial vehicle servicing.

#Trailer #Servicing & fault finding was featured in the recent July issue with an advert from aide automotive detailing the #ISOCheck.

ISOCheck EBS will test all electronic braking systems, #Wabco, Knorr #Bremse and #Haldex, covering the differences between the early generations and the latest.

ISOCheck really becomes the perfect test tool on a dark wet night, the quick test and the bright (Green) OK / Fault (Red) answer increases test and repair efficiency.

ISOCheck can be used as a constant visual aide on any truck and trailer but possibly especially for double decker trailers. Double decker trailers with a defective EBS system would vastly increase the chances of roll over or jack-knife. With ISOCheck in place a driver or depot gateman would be able to see the RED warning light.

To read the full article on Trailer Servicing, go to the CVW Magazine website to review an online copy.

Contact aide automotive on 0115 8456471 to learn more about #ISO7638 testing for truck & trailer.



#Commercial #Vehicle Workshop is a business magazine for companies

ISOCheck EBS will test all electronic braking systems, #Wabco, Knorr #Bremse and #Haldex

Truck & Trailer ULTRASONIC SIDE & REAR DETECTION SYSTEM

July 9th, 2019 Comments off

The aide automotive Fleet side/rear proximity detection system has been designed with safety in mind.

When used with our custom built combination speed/turn indicator trigger module, enables ultrasonic detection of obstacles for HGVs & LGVs.

Reversing is often the cause of vehicle damage or human injury. Fines have been issued to transport operators for employee injury and high costs in repairs for simple low speed reversing incidents.

But also blind spot side swipes and obstacles each side of an articulated truck are major hazards.

For the low cost of a detection system for HGV’s, a massive saving could be made!!

aide automotive have the facility to expertly install Truck detection systems, Diesel Tank Alarms & many other on board safety & efficiency products.

HGV Cyclist Blind Spot Prevention

Truck Reversing is often the cause of vehicle damage or human injury. Fines have been issued to transport operators for employee injury and high costs in repairs for simple low speed reversing incidents.





Car & Van 12 Volt Battery Tester – Parasitic Current Drain Test

July 6th, 2019 Comments off

Current Drain Tester – Battery Diagnostics

aide automotive MOT & Car Garage Workshop Equipment

The Current Drain Tester has been specifically designed to assist a technician with a Battery Parasitic Current Drain test. The purpose of the test is to assess and analyse the level of parasitic current drain from a vehicles’ battery during its shutdown and sleep periods. The Vehicle Battery Current Drain Tester is manufactured in the UK using quality IEC61010 components and offers durable performance for the vehicle workshop environment.

A test box that has mounted banana plugs and sockets enabling you to make quick, reliable and repeatable connections to a multimeter, oscilloscope and test leads. The box also contains a fast acting 15A 600V ‘meter saver’ fuse for continual protection of your test instrument and a switchable 15A automotive link fuse enabling a quick check on first connection and the ability to disconnect your instrument without disturbing the vehicles’ electrical system.

Included
A set of 1m black and red banana plug leads (longer lengths available).
A set of black and a red 36A 1000V large jaw crocodile clips.

So why & How….

Analysing the status of a vehicles’ battery is a common procedure to assess the engine start-up function and also determine the working health of the charging system. Battery diagnostics enables accurate fault finding and helps identify a potential component failure (e.g starter motor or alternator). If the engine start-up and charging system are tested and both deemed fully functional, yet the engine start-up issues continue then investigation into battery Parasitic Current Drain is the next step.

Parasitic Current Drain can be defined as any electrical device that draws electric current when the ignition key is turned off. As technology installed in new vehicles continues to develop, the demand on power required from the vehicles battery also increases. The understanding and diagnosis of Parasitic Current Drain is a basic task that can be made overly difficult with the use of insufficient or poor test equipment. Vehicle technology is likely to continue to advance and the Current Drain Tester Kit will ensure technicians are able to perform Parasitic Current Drain tests across all vehicles with improved speed and accuracy.

Voltage drop values are commonly measured with an Automotive Digital Multimeter and Parasitic Current Drain is commonly monitored on an Oscilloscope. A Low Amp Current Clamp can monitor the various stages of the vehicle shutdown period, where all on-board computers carry out functions that ensure working-operation of the vehicle when the driver returns.

Parasitic Current Drain testing relies on capturing current readings whilst accurately simulating the designated working environment of the vehicle.

Benefits Of The Current Drain Tester Kit

Link fuse offers testing versatility – Quickly and safely take a reading with added protection from a large current. Offers the capability to remove the test instrument by switching IN the 15A fuse and perform other multimeter tasks without the risk of disturbing the vehicles’ battery connection or inadvertently waking up the vehicles’ system as it performs the system shutdown.

Provides a reliable method of testing – Better alternative to the ineffective traditional troubleshooting method of circuit fuse removal testing. This type of intrusive testing could increase parasitic drain as disconnecting a memory supply (fuse) and reconnecting will wake the on-board computer, distorting any readings you may have captured.
Inline fast acting fuse to protect the Multimeter or Oscilloscope being used for test.

Uses IEC-610101 certified components and housed in a non-conductive sealed box for technician safety.

Contact aide automotive to purchase  – 0115 8456471



Car Battery Tester

12 Volt Car Current Drain Tester – Battery Diagnostics
